In this tutorial, we’ll extend the plugin we built in the previous part by adding a color picker that changes the fill color of a selected object inside Lottie Creator.

So far, our plugin has a button that creates a red animated rectangle. Now we’ll make the plugin interactive in the other direction as well: instead of only creating content, it will also modify content that already exists in the scene.

By the end of this tutorial, you’ll know how to:

• Add a color input to a Creator plugin
• Send color data from app.tsx to plugin.ts
• Convert a hex color into RGB
• Access the currently selected object in Creator
• Change the selected object’s fill color
• Improve the plugin layout with simple styling
• Use components from the Creator Plugins UI library

If your goal is primarily to develop Creator plugins with a coding agent, you can skip ahead to the next part of the series. This tutorial focuses on understanding the implementation directly.

Starting Point

Before continuing, you should already have the plugin from the previous tutorial.

That plugin contains a button that creates a red rectangle and animates its position.

Our next goal is to add another control:

Create Rectangle

[ Color Picker ]

The user will select an object in Creator, choose a new color in the plugin, and the selected object’s fill will update.

1. Add a Color Input

Open:

app.tsx

Below the existing Create Rectangle button, add a native HTML color input:

	return (
		<div>
			<button onClick={createRectangle}>Create Rectangle</button>

			<input type="color" onChange={changeColor}/>
		</div>
	);

The new input uses:

type="color"

which gives us the browser’s built-in color picker.

We also provide:

onChange={changeColor}

so a function will run whenever the user selects a new color.

At this point, changeColor does not exist yet.

Let’s create it.

2. Create the changeColor Function

Inside the App component, add a new function:

const changeColor = (
	event: React.ChangeEvent<HTMLInputElement>
) => {

};

The event gives us access to the color selected by the user.

We can retrieve it with:

event.currentTarget.value

For example, selecting red might return:

#ff0000

There is one issue, though.

The browser gives us the color in hex format, while our plugin logic expects an RGB object such as:

{
	r: 255,
	g: 0,
	b: 0
}

So we need to convert the value before sending it to the plugin.

3. Convert Hex to RGB

Inside the changeColor function, add a small conversion helper:

const hexToRgb = (hex: string) => ({
	r: parseInt(hex.slice(1, 3), 16),
	g: parseInt(hex.slice(3, 5), 16),
	b: parseInt(hex.slice(5, 7), 16),
});

This takes a color such as:

#ff8000

and converts it into:

{
	r: 255,
	g: 128,
	b: 0
}

Each pair of hexadecimal characters represents one color channel.

4. Send the Color to the Plugin

Now use the same message-passing pattern we used for creating the rectangle.

Inside changeColor, add:

parent.postMessage(
	{
		pluginMessage: {
			type: "change-color",
			color: hexToRgb(event.currentTarget.value),
		},
	},
	"*",
);

The completed function becomes:

const changeColor = (
	event: React.ChangeEvent<HTMLInputElement>
) => {

	const hexToRgb = (hex: string) => ({
		r: parseInt(hex.slice(1, 3), 16),
		g: parseInt(hex.slice(3, 5), 16),
		b: parseInt(hex.slice(5, 7), 16),
	});

	parent.postMessage(
		{
			pluginMessage: {
				type: "change-color",
				color: hexToRgb(event.currentTarget.value),
			},
		},
		"*",
	);
};

The message now contains two things:

type: "change-color"
color: { r, g, b }

The communication flow is:

User chooses a color
        ↓
changeColor()
        ↓
Read hex value
        ↓
Convert hex → RGB
        ↓
postMessage()
        ↓
plugin.ts

Improve the Plugin Layout

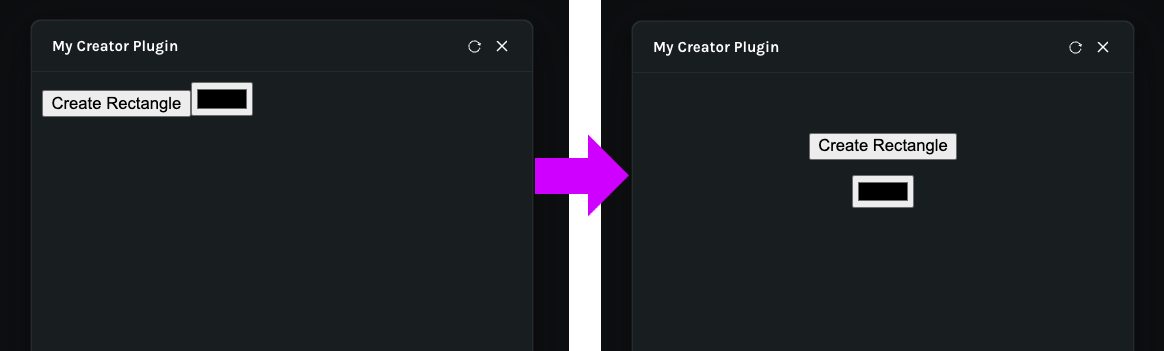

5. Stack the Controls Vertically

Right now, the button and color picker may appear close together or arranged awkwardly.

We can clean up the interface using a little inline styling.

Wrap both controls inside a div and add:

style={{
	display: "flex",
	flexDirection: "column",
	alignItems: "center",
	gap: "12px",
	paddingTop: "40px",
}}

The result looks like this:

<div
	style={{
		display: "flex",
		flexDirection: "column",
		alignItems: "center",
		gap: "12px",
		paddingTop: "40px",
	}}
>
	<button onClick={createRectangle}>
		Create Rectangle
	</button>

	<input
		type="color"
		onChange={changeColor}
	/>
</div>

Here:

display: flex

enables Flexbox.

flexDirection: column

stacks the controls vertically.

alignItems: center

centers them horizontally.

gap: 12px

adds spacing between the controls.

paddingTop: 40px

adds space above the interface.

Update the Selected Object

6. Listen for the change-color Message

Now open:

plugin.ts

We already have logic that checks for:

msg.type === "create-rectangle"

Add another condition for:

msg.type === "change-color"

For example:

if (msg.type === "change-color") {

}

This code will run whenever the user changes the color picker.

7. Get the Selected Object

Inside the new condition, access Creator’s current selection:

const node = creator.selection.nodes[0];

This gets the first selected object.

For this introductory example, we’re assuming that:

• An object is selected
• That object supports fills

In production code, you would normally add checks to make sure those assumptions are valid.

For now, we’ll keep the example concise.

8. Get the Object’s Fill

Next, get the first fill on the selected node:

const fill = node.fills[0];

Now we have access to the selected object’s fill.

9. Change the Fill Color

Finally, set its static color value:

fill.color.staticValue = msg.color;

The complete color-change logic is:

if (msg.type === "change-color") {
	const node = creator.selection.nodes[0];
	const fill = node.fills[0];

	fill.color.staticValue = msg.color;
}

That’s all we need.

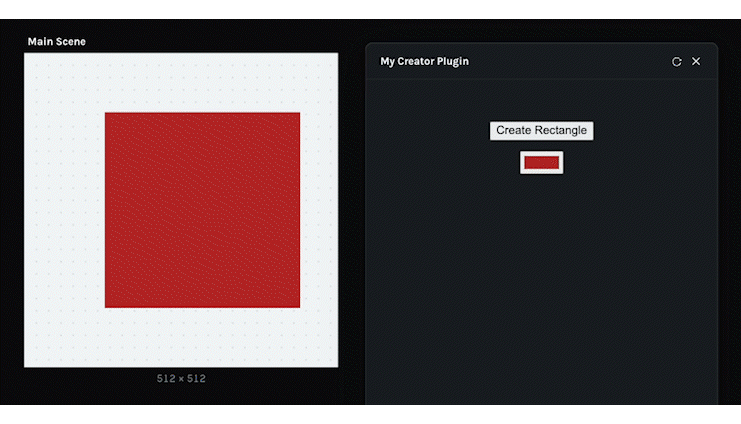

The complete flow is now:

Select object in Creator
        ↓
Choose color in plugin
        ↓
app.tsx sends "change-color"
        ↓
plugin.ts receives message
        ↓
Get selected node
        ↓
Get first fill
        ↓
Set fill color

Explore the Creator API

At this point, our plugin can both create content and modify existing content.

But how do we discover what else is possible?

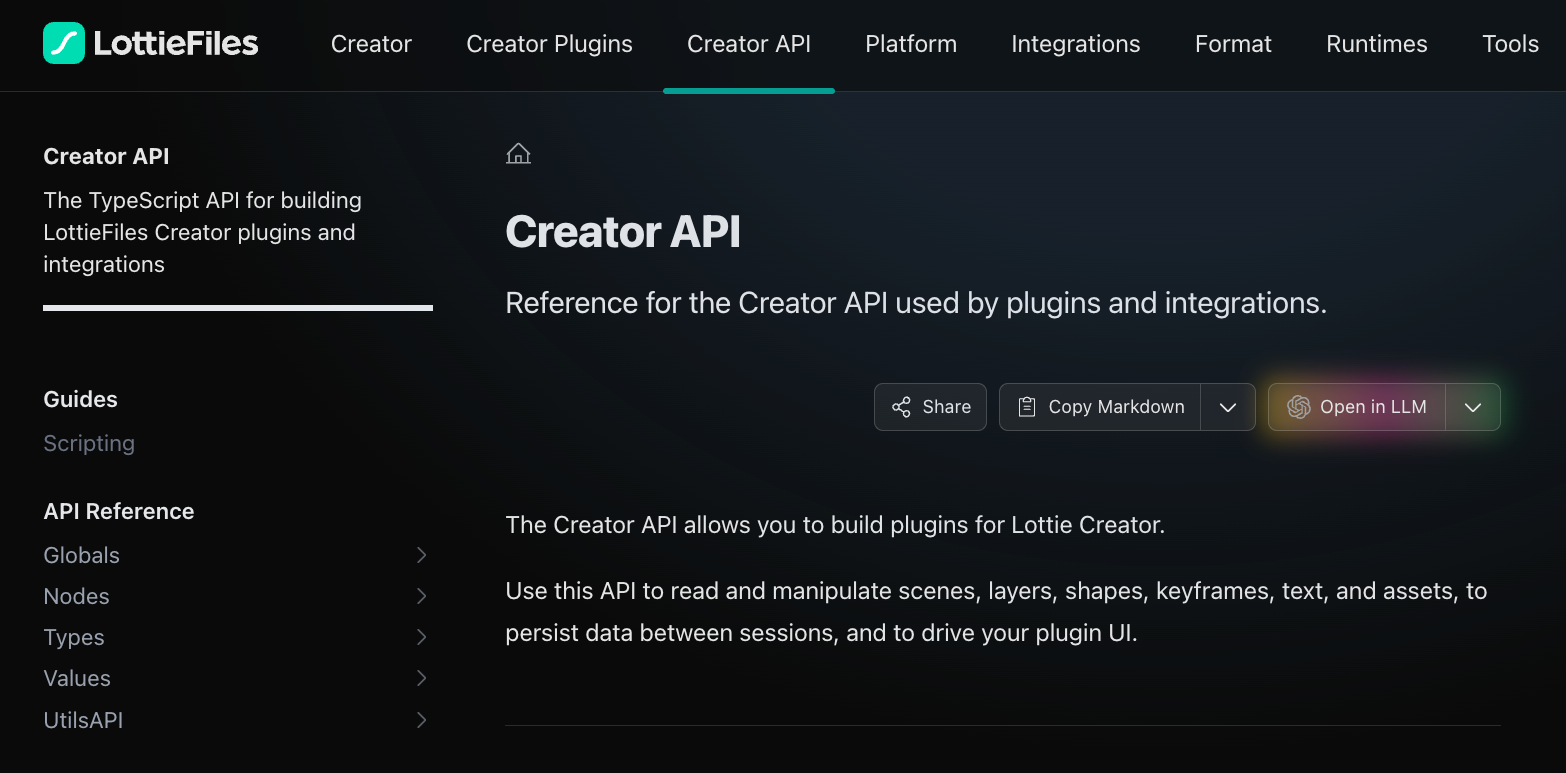

Return to the LottieFiles Extensions and open:

Create a Plugin → Creator APIs

The Creator API documentation contains information about the different objects and properties available to plugins.

You can explore:

• Nodes
• Types
• Values
• Scene properties
• Shape properties
• Animation properties
• Selection APIs
• Fill and stroke properties

This documentation is the main reference when you want to understand what your plugin can read or modify inside Creator.

Use the Creator Plugins UI Library

10. Open the UI Library Documentation

Creator also provides a dedicated UI library for plugin interfaces.

From Extensions, open the UI Library section.

The library contains components designed to visually match Creator.

Instead of using a plain HTML button like:

<button>
	Create Rectangle
</button>

we can replace it with a Creator UI component.

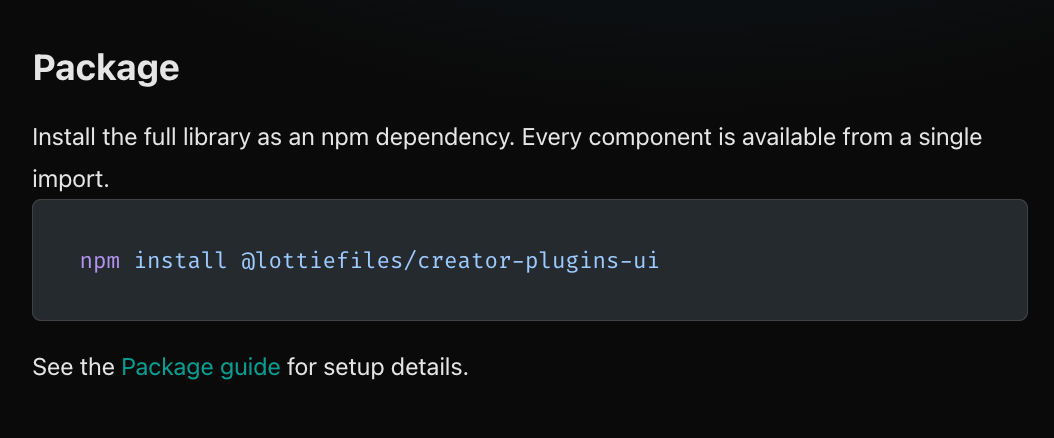

11. Install the UI Library

From the UI Library installation section, copy the npm installation command.

Run it inside your plugin project from Terminal.

This installs:

@lottiefiles/creator-plugins-ui

12. Import the Creator Button

Back in app.tsx, import the Button component:

import { Button } from "@lottiefiles/creator-plugins-ui";

You also need to import the library’s styles:

import "@lottiefiles/creator-plugins-ui/styles.css";

Your imports now include:

import { Button } from "@lottiefiles/creator-plugins-ui";
import "@lottiefiles/creator-plugins-ui/styles.css";

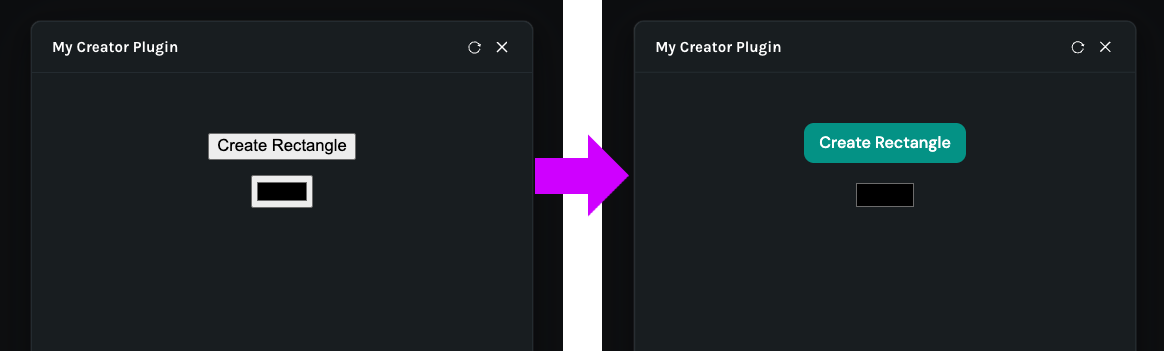

13. Replace the HTML Button

Change:

<button onClick={createRectangle}>
	Create Rectangle
</button>

to:

<Button onClick={createRectangle}>
	Create Rectangle
</Button>

Notice the uppercase Button.

This now comes from the Creator Plugins UI library rather than the browser’s default HTML elements.

Once you save the project and return to Creator, the button should immediately adopt the styling provided by the UI library.

Example app.tsx

After these changes, your UI code will look approximately like this:

import { Button } from "@lottiefiles/creator-plugins-ui";
import "@lottiefiles/creator-plugins-ui/styles.css";

export const App = () => {

	const createRectangle = () => {
		parent.postMessage(
			{
				pluginMessage: {
					type: "create-rectangle",
				},
			},
			"*",
		);
	};

	const changeColor = (
		event: React.ChangeEvent<HTMLInputElement>
	) => {

		const hexToRgb = (hex: string) => ({
			r: parseInt(hex.slice(1, 3), 16),
			g: parseInt(hex.slice(3, 5), 16),
			b: parseInt(hex.slice(5, 7), 16),
		});

		parent.postMessage(
			{
				pluginMessage: {
					type: "change-color",
					color: hexToRgb(event.currentTarget.value),
				},
			},
			"*",
		);
	};

	return (
		<div
			style={{
				display: "flex",
				flexDirection: "column",
				alignItems: "center",
				gap: "12px",
				paddingTop: "40px",
			}}
		>
			<Button onClick={createRectangle}>
				Create Rectangle
			</Button>

			<input
				type="color"
				onChange={changeColor}
			/>
		</div>
	);
};

Example plugin.ts

The corresponding plugin logic will contain both message handlers:

creator.ui.show();

creator.ui.onMessage((msg: any) => {

	if (msg.type === "create-rectangle") {
		const scene = creator.activeScene;

		const x = scene.size.width / 2;
		const y = scene.size.height / 2;

		const layer = scene.createShapeLayer({
			position: {
				x,
				y,
			},
		});

		layer.createRectangle();

		layer.createFill({
			type: "SOLID",
			color: {
				r: 255,
				g: 0,
				b: 0,
			},
		});

		layer.position.addKeyframes([
			{
				frame: 0,
				value: {
					x,
					y,
				},
			},
			{
				frame: 100,
				value: {
					x: x + 120,
					y,
				},
			},
		]);
	}

	if (msg.type === "change-color") {
		const node = creator.selection.nodes[0];
		const fill = node.fills[0];

		fill.color.staticValue = msg.color;
	}
});

How the Two-Way Interaction Works

Our plugin now has two different interaction patterns.

Creating content

Plugin UI
   ↓
"create-rectangle"
   ↓
plugin.ts
   ↓
Creator API
   ↓
New rectangle

Modifying content

Selected Creator object
        ↑
      Fill
        ↑
plugin.ts receives "change-color"
        ↑
Plugin color picker

Together, these demonstrate one of the most important concepts in Creator plugin development:

Plugin UI
    ↕
Plugin Logic
    ↕
Creator Scene

What We Built

In this tutorial, we extended our plugin so it can:

• Display a native color picker
• Read the selected hex color
• Convert hex into RGB
• Send the RGB color through postMessage
• Access the currently selected Creator node
• Access that node’s first fill
• Modify its fill color
• Stack and center plugin controls
• Add spacing to the interface
• Install the Creator Plugins UI library
• Replace a native HTML button with the Creator Button component

What’s Next?

We now understand the basic mechanics of developing Creator plugins manually.

So far, we’ve learned how to:

Create UI
    ↓
Send Messages
    ↓
Read Creator Data
    ↓
Modify Creator Objects
    ↓
Create Animation

In the next part of the series, we’ll take a different approach.

Instead of writing all of the plugin code ourselves, we’ll look at how to develop a Creator plugin using a coding agent and the Creator plugin development skills.
